Non-Adjustable Small Bore Series Shock Absorbers

Non-Adjustable Small Bore Series Shock Absorbers

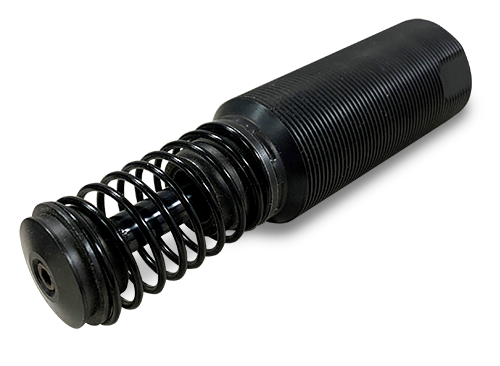

Stable, Reliable Performance in a Small Shock Absorber Package

ITT Enidine small bore non-adjustable hydraulic shock absorbers can accommodate varying energy conditions. This family of tamperproof industrial shock absorbers provides consistent performance, cycle after cycle. Small bore non-adjustable models are designed to absorb maximum energy within a compact envelope size while providing you with stable performance over the life of the product.

The PM Series uses a self-compensating design to provide energy absorption in low velocity and high drive force applications. The Platinum PM Series also includes the added benefit of corrosion-resistant, nickel-plated components and positive stop capabilities. Models can accommodate a wide range of operating conditions with varying masses or propelling forces.

The Platinum PRO Series has unique progressive damping and a multi-orifice design that provides softer stops for medium-to-high impact velocities and fragile loads. The Platinum PRO Series also includes the added benefit of corrosion-resistant, nickel-plated components and positive stop capabilities. Models can accommodate a wide range of operating conditions.

Datasheets

Specifications

  • Extensive non-adjustable product line offers flexibility in both size and energy absorption capacity to fulfill a wide range of application requirements.
  • Tamperproof design ensures repeatable performance.
  • Special materials and finishes can be designed to meet specific customer requirements.
  • Incorporating optional fluids and seal packages can expand the standard operating temperature range from (15°F to 180°F) to (–30°F to 210°F).
  • Threaded cylinders provide mounting flexibility and increase surface area for improved heat dissipation.
  • A select variety of surface finishes maintains original quality appearance and provides the longest corrosion resistance protection.
  • ISO quality standards result in reliable, long-life operation.

Applications

You have an old version of Adobe's Flash Player. Get the latest Flash player. Our Small Bore products are used in the following applications:

  • Robotics
  • Conveyor Systems
  • Factory Automation
  • Semi-Conductor Manufacturing
  • Food Processing Equiipment
  • Metal Forming and Stamping Equipment
  • Medical Devices
  • Automotive Manufacturing

FAQ

Can the OEM series shock absorbers be orificed for a specific application?

Yes. These shock absorbers can be orifice to provide specific damping for a particular application. When the shock absorbers are custom orifice they are referred to as CBOEM shock absorbers.

Does the HD model utilize a mechanical spring return?

No, the design incorporates an air charged bladder accumlator.

How are the OEM series shock absorbers adjusted?

The small series OEM shock absorbers can be adjusted by rotating the adjustment knob at the back of the shock absorber.

How do you determine whether an application will exceed 10 degrees(+/-5%) allowable angle?

The maximum side-load angle allowed by Enidine Incorporated is 10° (+5°). For a rotating arm, door, lid or circuit breaker for example, the moving load should be perpendicular to the center-line of the piston rod when it is halfway through the stroke.

How is the usable adjustment settings graph used?

Locate the applications impact velocity on the Y-axis and the selected model graph line. Follow the impact velocity horizontally until it intersects the selected model graph line. Follow the intersection point vertically down to the X-axis. The value at the X-axis is the maximum allowable adjustment setting.

Are there any accessories available for the OEM small series shock absorbers?

Enidine Incorporated offers a full assortment of accessories that include stop collars, jam nuts, cylinder clevises, foot mounts and cap pads. Not all accessories are available with all models.

How much additional energy capacity is obtained when using an Air/Oil tank?

Generally the shock absorber's energy capacity per hour can be increased by 20%.

What are DA units used for?

DA stands for double acting non-adjustable hydraulic damper. Applications range from doors and lids to amusement rides and conveyor systems.

What are the advantages of an Enidine Incorporated shock absorber over rubber bumpers and springs?

Longer Life - It significantly reduces shock and vibration to machinery.

Higher Operating Speeds - Machines can be operated at higher speeds because of the Shock Absorber control or gently stop moving objects.

Improved Production Quality - Harmful side effects of motion, such as noise and vibration and damaging impacts are moderate or eliminated, so the quality of production is improved.

Safer Machinery - Protects machinery and operators by offering predictable, reliable and controlled deceleration.

Improved Production Quality - Harmful side effects of motion, such as noise and vibration and damaging impacts are moderate or eliminated, so the quality of production is improved.

Safer Machinery - Protects machinery and operators by offering predictable, reliable and controlled deceleration.

What are the most common names/types of shock absorbers?

Dampers, Buffers, Dashpost, Snubbers and Isolators.

What are the OEM small series shock absorbers?

The OEM small series shock absorbers are a series of adjustable shock absorbers that have bore siezes of 1/4 inch to 5/8 inch in diameter and stroke lengths of .28 inches to 2 inches depending on model.

What does HD stand for?

HD is the name of Enidine Incorporated's Heavy Duty series of shock absorbers.

What is a Towbar?

A specially designed DA which dampen abrupt starts and stops of power and free conveying systems.

What is an Enidine Incorporated CBOEM shock absorber?

CBOEM is a custom orifice non - adjustable unit, which meets specific application requirement.

What is Conventional Damping?

Allows linear deceleration by providing a constant shock force over the entire stroke.

What is Dashpot Damping?

This provides the largest shock force at the beginning of the stroke when the impact velocity is highest.

What is Progressive Damping?

This provides deceleration with a gradually increasing shock force. The initial minimal resistance at impact protects delicate loads and machinery from damage.

What is the adjustment range of the small bore OEM series shock absorbers?

The OEM small bore series shock absorbers have an adjustment range of 0 minimum damping to 8.0 maximum damping .

What is the charge pressure on an HD shock to be used?

Typically the HD models are charged at the factory to between 30 and 40 psi.

What is the standard operational temperature range of the OEM and PM/PRO series shock absorbers?

The standard operational temperature range is 15 to 180°F (-10 to 85°C).

What type of damping do the small bore OEM series shock absorbers provide?

The OEM .1 through .5 provide dashpot type damping. The OEM 1.0, OEM 1.25 x 1 and OEM 1.25 x 2 provide conventional type damping.

When should an Air/Oil tank be considered?

A. When the application's energy per hour exceeds the maximum rating for self contained units.

B. When the piston rod sequence must be controlled.

Non-Adjustable Small Bore Series Shock Absorbers

Non-Adjustable Small Bore Series Shock Absorbers

Stable, Reliable Performance in a Small Shock Absorber Package

ITT Enidine small bore non-adjustable hydraulic shock absorbers can accommodate varying energy conditions. This family of tamperproof industrial shock absorbers provides consistent performance, cycle after cycle. Small bore non-adjustable models are designed to absorb maximum energy within a compact envelope size while providing you with stable performance over the life of the product.

The PM Series uses a self-compensating design to provide energy absorption in low velocity and high drive force applications. The Platinum PM Series also includes the added benefit of corrosion-resistant, nickel-plated components and positive stop capabilities. Models can accommodate a wide range of operating conditions with varying masses or propelling forces.

The Platinum PRO Series has unique progressive damping and a multi-orifice design that provides softer stops for medium-to-high impact velocities and fragile loads. The Platinum PRO Series also includes the added benefit of corrosion-resistant, nickel-plated components and positive stop capabilities. Models can accommodate a wide range of operating conditions.

Datasheets
Specifications
  • Extensive non-adjustable product line offers flexibility in both size and energy absorption capacity to fulfill a wide range of application requirements.
  • Tamperproof design ensures repeatable performance.
  • Special materials and finishes can be designed to meet specific customer requirements.
  • Incorporating optional fluids and seal packages can expand the standard operating temperature range from (15°F to 180°F) to (–30°F to 210°F).
  • Threaded cylinders provide mounting flexibility and increase surface area for improved heat dissipation.
  • A select variety of surface finishes maintains original quality appearance and provides the longest corrosion resistance protection.
  • ISO quality standards result in reliable, long-life operation.
Applications

You have an old version of Adobe's Flash Player. Get the latest Flash player. Our Small Bore products are used in the following applications:

  • Robotics
  • Conveyor Systems
  • Factory Automation
  • Semi-Conductor Manufacturing
  • Food Processing Equiipment
  • Metal Forming and Stamping Equipment
  • Medical Devices
  • Automotive Manufacturing

Can the OEM series shock absorbers be orificed for a specific application?

Yes. These shock absorbers can be orifice to provide specific damping for a particular application. When the shock absorbers are custom orifice they are referred to as CBOEM shock absorbers.

Does the HD model utilize a mechanical spring return?

No, the design incorporates an air charged bladder accumlator.

How are the OEM series shock absorbers adjusted?

The small series OEM shock absorbers can be adjusted by rotating the adjustment knob at the back of the shock absorber.

How do you determine whether an application will exceed 10 degrees(+/-5%) allowable angle?

The maximum side-load angle allowed by Enidine Incorporated is 10° (+5°). For a rotating arm, door, lid or circuit breaker for example, the moving load should be perpendicular to the center-line of the piston rod when it is halfway through the stroke.

How is the usable adjustment settings graph used?

Locate the applications impact velocity on the Y-axis and the selected model graph line. Follow the impact velocity horizontally until it intersects the selected model graph line. Follow the intersection point vertically down to the X-axis. The value at the X-axis is the maximum allowable adjustment setting.

Are there any accessories available for the OEM small series shock absorbers?

Enidine Incorporated offers a full assortment of accessories that include stop collars, jam nuts, cylinder clevises, foot mounts and cap pads. Not all accessories are available with all models.

How much additional energy capacity is obtained when using an Air/Oil tank?

Generally the shock absorber's energy capacity per hour can be increased by 20%.

What are DA units used for?

DA stands for double acting non-adjustable hydraulic damper. Applications range from doors and lids to amusement rides and conveyor systems.

What are the advantages of an Enidine Incorporated shock absorber over rubber bumpers and springs?

Longer Life - It significantly reduces shock and vibration to machinery.

Higher Operating Speeds - Machines can be operated at higher speeds because of the Shock Absorber control or gently stop moving objects.

Improved Production Quality - Harmful side effects of motion, such as noise and vibration and damaging impacts are moderate or eliminated, so the quality of production is improved.

Safer Machinery - Protects machinery and operators by offering predictable, reliable and controlled deceleration.

Improved Production Quality - Harmful side effects of motion, such as noise and vibration and damaging impacts are moderate or eliminated, so the quality of production is improved.

Safer Machinery - Protects machinery and operators by offering predictable, reliable and controlled deceleration.

What are the most common names/types of shock absorbers?

Dampers, Buffers, Dashpost, Snubbers and Isolators.

What are the OEM small series shock absorbers?

The OEM small series shock absorbers are a series of adjustable shock absorbers that have bore siezes of 1/4 inch to 5/8 inch in diameter and stroke lengths of .28 inches to 2 inches depending on model.

What does HD stand for?

HD is the name of Enidine Incorporated's Heavy Duty series of shock absorbers.

What is a Towbar?

A specially designed DA which dampen abrupt starts and stops of power and free conveying systems.

What is an Enidine Incorporated CBOEM shock absorber?

CBOEM is a custom orifice non - adjustable unit, which meets specific application requirement.

What is Conventional Damping?

Allows linear deceleration by providing a constant shock force over the entire stroke.

What is Dashpot Damping?

This provides the largest shock force at the beginning of the stroke when the impact velocity is highest.

What is Progressive Damping?

This provides deceleration with a gradually increasing shock force. The initial minimal resistance at impact protects delicate loads and machinery from damage.

What is the adjustment range of the small bore OEM series shock absorbers?

The OEM small bore series shock absorbers have an adjustment range of 0 minimum damping to 8.0 maximum damping .

What is the charge pressure on an HD shock to be used?

Typically the HD models are charged at the factory to between 30 and 40 psi.

What is the standard operational temperature range of the OEM and PM/PRO series shock absorbers?

The standard operational temperature range is 15 to 180°F (-10 to 85°C).

What type of damping do the small bore OEM series shock absorbers provide?

The OEM .1 through .5 provide dashpot type damping. The OEM 1.0, OEM 1.25 x 1 and OEM 1.25 x 2 provide conventional type damping.

When should an Air/Oil tank be considered?

A. When the application's energy per hour exceeds the maximum rating for self contained units.

B. When the piston rod sequence must be controlled.
