Additional Testing
Material:
Rubber Process Analyzer:

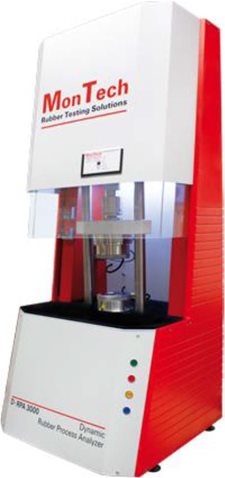

The D-RPA 3000 is an advanced rubber process
analyzer designed for measuring the viscoelastic
properties of polymers and elastomeric compounds
before, during, and after cure. The acquired data
gives exact information about the processability,
cure characteristics, cure speed, behavior of the
compound after-cure, and final compound
dynamic mechanical properties, with an
unlimited amount of testing steps and
subroutines.
Elastomeric Fatigue Testing:
Multi-sample elastomeric fatigue tester
designed to establish endurance/ failure
modes of our elastomeric families.
This is based on a bonded double lap
shear specimens.
Torsion:
Static (Electromechanical):
- Torque unit fatigue rating: +/-15,000 in-lb
- Total axial test space: 28 in.
- Torque centerline to frame: 24 in.
- Total Travel: 360 deg
- Maximum speed: 60 deg/s
Dynamic (Hydraulic):
- Torque unit fatigue rating: +/-22,000 in-lb
- Total Travel: +/-50 deg
- Maximum Freq: 20Hz
