Dynamic Testing

Test Stand:

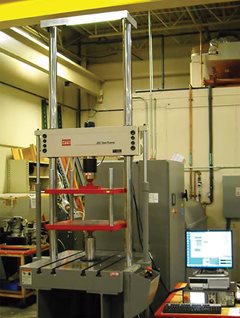

  • MTS 322 Test Frame

Category:

  • Versatile, Vertical

Specifications:

  • Model: 322.31
  • Load unit fatigue rating: +/-55 kip
  • Maximum specimen: 50.0 in
  • Width between columns: 25.0 in
  • Maximum stroke: 10 in
  • Maximum actuator speed: 6 ips
  • Maximum frequency: 30 Hz

Motion Controller:

  • Position and load control.

Application Software:

  • MTS Series 793

MPT Software can quickly create test

sequences, including any sequence of

command generation and data acquisition.


Command waveforms include:

  • Ramp
  • Sine wave
  • Square wave
  • Saw Tooth wave
