Seismic Testing

Test Stand:

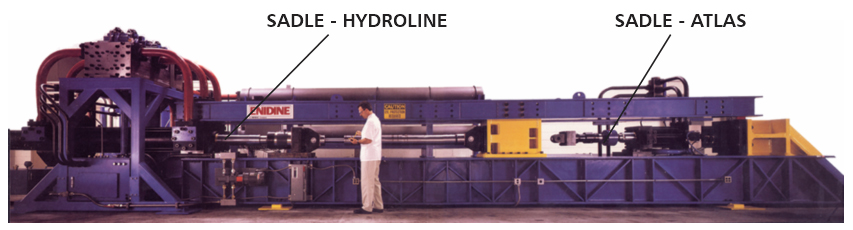

• Sadle

Category:

• Versatile, Horizontal

Specifications:

Bench-#1 Model:     SADLE-HYDROLINE      Load unit fatigue rating:     +/-500 kip   Maximum Specimen:     190.0 in Maximum Specimen Dia:     19.0 in Maximum stroke:     72 in Maximum actuator speed:     80 ips Maximum frequency:     5 Hz

Bench-#2 SADLE-ATLAS  +/-160 kip 180.0 in 19.0 in 15 in  40 ips 10 Hz



Motion Controller:

• PMAC, Position control.

Application Software:

• In-house developed Labview based motion control software.

Command waveforms include:

• Ramp
• Sine wave
• Square wave
• Saw Tooth wave
