Dynamic Testing

Test Stand:

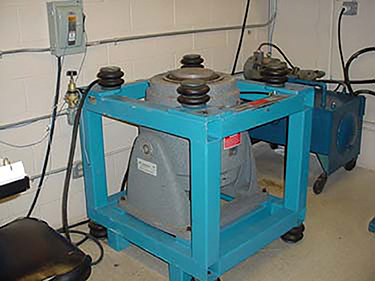

• MB DYNAMICS Shaker Systems- C10E

Category:

• Electro-Dynamic, Single-Axis

MTS 322 (Short Length Frame):

• Model: C10E
• Force Output: 1200 lbs. Vector
  Continuous duty sinusoidal output)
  850 lbs. rms
  (Noise testing 15-2k Hz bandwidth)
  2550 lbs. peak
  (Noise testing 15-2k Hz bandwidth)
• Frequency Range: 5 to 3000 Hz
• Total Table Displacement: 1 inch
  (Double Amplitude)
• Maximum Velocity: 70 ips
• Mounting Table: 8” diameter outer bolt-circle

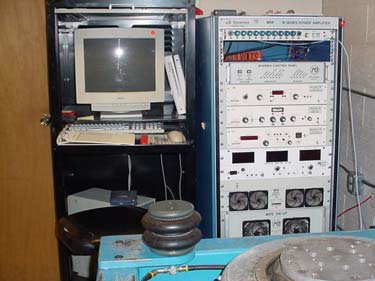

Application Software:

• UD-VWIN CONTROL SYSTEM. Available
• Input waveforms include:
• Random
• Sine wave
• Shock
• Resonance Dwell
